Under 12.04, there was a scan function that would show all detected wireless networks. That seems to be missing on 14.04. I've read a lot about "network-manager," but I cannot find it anywhere on my Kickoff Application Launcher, although "locate" shows lots of files with those words in their names. Is there a way to scan wireless networks in 14.04, and if so, can someone point me at it? Many thanks.
-
-
It does.
Windows no longer obstructs my view.
Using Kubuntu Linux since March 23, 2007.
"It is a capital mistake to theorize before one has data." - Sherlock Holmes -
Hi, Snowhog,
That looks great, but I've never seen the screen you posted. How does one get to that from the desktop? When I go into Network Settings, the closest I come to that is under "Service Discovery," but it looks nothing like your screen. Is there somewhere else in System Settings that I should be looking?Comment
-
Don't you have the Network Management icon in your system try?Windows no longer obstructs my view.
Using Kubuntu Linux since March 23, 2007.
"It is a capital mistake to theorize before one has data." - Sherlock HolmesComment
-

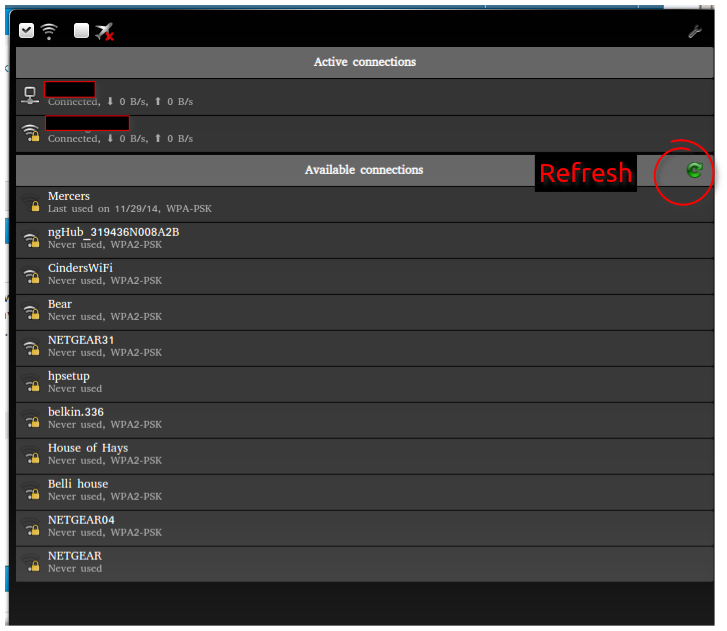

your network manager is in the same place it was in 12.04 ,,,,,the system tray.
point at the network icon
it's showing my conection
click it ......and you will see available connections..............................
clicking the green circle arrow will refresh the list of available connections
you can scan from the command line withCode:sudo iwlist scan
VINNYCode:vinny@vinny-Bonobo-Extreme:~$ sudo iwlist scan eth0 Interface doesn't support scanning. lo Interface doesn't support scanning. virbr0 Interface doesn't support scanning. wlan0 Scan completed : Cell 01 - Address: 00:17:3F:57:43:7C Channel:11 Frequency:2.462 GHz (Channel 11) Quality=70/70 Signal level=-29 dBm Encryption key:on ESSID:"vnix1" Bit Rates:1 Mb/s; 2 Mb/s; 5.5 Mb/s; 11 Mb/s Bit Rates:6 Mb/s; 9 Mb/s; 12 Mb/s; 18 Mb/s; 24 Mb/s 36 Mb/s; 48 Mb/s; 54 Mb/s Mode:Master Extra:tsf=00000325fe21cae1 Extra: Last beacon: 85ms ago IE: Unknown: 0005766E697831 IE: Unknown: 010482848B96 IE: Unknown: 03010B IE: WPA Version 1 Group Cipher : TKIP Pairwise Ciphers (1) : TKIP Authentication Suites (1) : PSK IE: Unknown: 0406000200000000 IE: Unknown: 2A0100 IE: Unknown: 32080C1218243048606C Cell 02 - Address: FC:94:E3:27:5F:B6 Channel:1 Frequency:2.412 GHz (Channel 1) Quality=24/70 Signal level=-86 dBm Encryption key:on ESSID:"SBG6580D6" Bit Rates:1 Mb/s; 2 Mb/s; 5.5 Mb/s; 11 Mb/s Bit Rates:6 Mb/s; 9 Mb/s; 12 Mb/s; 18 Mb/s; 24 Mb/s 36 Mb/s; 48 Mb/s; 54 Mb/s Mode:Master Extra:tsf=0000004a79761fff Extra: Last beacon: 15446ms ago IE: Unknown: 0009534247363538304436 IE: Unknown: 010482848B96 IE: Unknown: 030101 IE: Unknown: 2A0104 IE: Unknown: 2F0104 IE: IEEE 802.11i/WPA2 Version 1 Group Cipher : TKIP Pairwise Ciphers (2) : CCMP TKIP Authentication Suites (1) : PSK IE: Unknown: 32080C1218243048606C IE: Unknown: DD090010180203F02C0000 IE: Unknown: DD180050F2020101800003A4000027A4000042435E0062322F00 Cell 03 - Address: 00:26:F2:DD:37:0E Channel:6 Frequency:2.437 GHz (Channel 6) Quality=24/70 Signal level=-86 dBm Encryption key:on ESSID:"BIGSARGE" Bit Rates:1 Mb/s; 2 Mb/s; 5.5 Mb/s; 11 Mb/s; 18 Mb/s 24 Mb/s; 36 Mb/s; 54 Mb/s Bit Rates:6 Mb/s; 9 Mb/s; 12 Mb/s; 48 Mb/s Mode:Master Extra:tsf=0000028144f70307 Extra: Last beacon: 15446ms ago IE: Unknown: 00084249475341524745 IE: Unknown: 010882848B962430486C IE: Unknown: 030106 IE: Unknown: 2A0104 IE: Unknown: 2F0104 IE: IEEE 802.11i/WPA2 Version 1 Group Cipher : CCMP Pairwise Ciphers (1) : CCMP Authentication Suites (1) : PSK IE: Unknown: 32040C121860 IE: Unknown: DD7F0050F204104A00011010440001021041000100103B000103104700106AAE2956040FC72F7E1F4A4C504662A51021000D4E4554474541522C20496E632E10230009574752363134763130102400095747523631347631301042000538333235381054000800060050F204000110110009574752363134763130100800020084 IE: Unknown: DD090010180203F0050000 IE: Unknown: DD180050F2020101800003A4000027A4000042435E0062322F00 Cell 04 - Address: 20:AA:4B:19:D4:20 Channel:11 Frequency:2.462 GHz (Channel 11) Quality=19/70 Signal level=-91 dBm Encryption key:on ESSID:"Cora Humphries" Bit Rates:1 Mb/s; 2 Mb/s; 5.5 Mb/s; 11 Mb/s; 18 Mb/s 24 Mb/s; 36 Mb/s; 54 Mb/s Bit Rates:6 Mb/s; 9 Mb/s; 12 Mb/s; 48 Mb/s Mode:Master Extra:tsf=00000259deaede09 Extra: Last beacon: 15446ms ago IE: Unknown: 000E436F72612048756D706872696573 IE: Unknown: 010882848B962430486C IE: Unknown: 03010B IE: Unknown: 2A0100 IE: Unknown: 2F0100 IE: IEEE 802.11i/WPA2 Version 1 Group Cipher : TKIP Pairwise Ciphers (2) : CCMP TKIP Authentication Suites (1) : PSK IE: Unknown: 32040C121860 IE: Unknown: 2D1A7C181BFFFF000000000000000000000000000000000000000000 IE: Unknown: 3D160B081100000000000000000000000000000000000000 IE: Unknown: DD740050F204104A0001101044000102103B000103104700108BDC31625955C1797A6D5A728939822A102100074C696E6B73797310230004453930301024000776312E302E30301042000234321054000800060050F20400011011000445393030100800022688103C0001011049000600372A000120 IE: Unknown: DD090010180200F02C0000 IE: WPA Version 1 Group Cipher : TKIP Pairwise Ciphers (2) : CCMP TKIP Authentication Suites (1) : PSK IE: Unknown: DD180050F2020101800003A4000027A4000042435E0062322F00 Cell 05 - Address: F0:82:61:54:D5:E5 Channel:11 Frequency:2.462 GHz (Channel 11) Quality=16/70 Signal level=-94 dBm Encryption key:on ESSID:"WIN_d5e6" Bit Rates:1 Mb/s; 2 Mb/s; 5.5 Mb/s; 11 Mb/s; 18 Mb/s 24 Mb/s; 36 Mb/s; 54 Mb/s Bit Rates:6 Mb/s; 9 Mb/s; 12 Mb/s; 48 Mb/s Mode:Master Extra:tsf=00000079d85ac3cd Extra: Last beacon: 15446ms ago IE: Unknown: 000857494E5F64356536 IE: Unknown: 010882848B962430486C IE: Unknown: 03010B IE: Unknown: 2A0106 IE: Unknown: 2F0106 IE: IEEE 802.11i/WPA2 Version 1 Group Cipher : TKIP Pairwise Ciphers (2) : CCMP TKIP Authentication Suites (1) : PSK IE: Unknown: 32040C121860 IE: Unknown: 2D1A7C181BFF00000000000000000000000000000000000000000000 IE: Unknown: 3D160B001700000000000000000000000000000000000000 IE: Unknown: DD800050F204104A0001101044000102103B00010310470010CC767C913CD712D5209F1AC180F505CF1021000842726F6164636F6D1023000842726F6164636F6D1024000631323334353610420004313233341054000800060050F20400011011000A42726F6164636F6D415010080002200C103C0001011049000600372A000120 IE: Unknown: DD090010180202F02C0000 IE: Unknown: DD180050F2020101800003A4000027A4000042435E0062322F00 Cell 06 - Address: 14:2D:27:BA:69:8B Channel:6 Frequency:2.437 GHz (Channel 6) Quality=17/70 Signal level=-93 dBm Encryption key:on ESSID:"Murph wifi" Bit Rates:1 Mb/s; 2 Mb/s; 5.5 Mb/s; 11 Mb/s Bit Rates:6 Mb/s; 9 Mb/s; 12 Mb/s; 18 Mb/s; 24 Mb/s 36 Mb/s; 48 Mb/s; 54 Mb/s Mode:Master Extra:tsf=0000038067536311 Extra: Last beacon: 85ms ago IE: Unknown: 000A4D757270682077696669 IE: Unknown: 010482848B96 IE: Unknown: 030106 IE: Unknown: 2A0104 IE: Unknown: 2F0104 IE: IEEE 802.11i/WPA2 Version 1 Group Cipher : CCMP Pairwise Ciphers (1) : CCMP Authentication Suites (1) : PSK IE: Unknown: 32080C1218243048606C IE: Unknown: 2D1ABC181BFFFF000000000000000000000000000000000000000000 IE: Unknown: 3D1606001700000000000000000000000000000000000000 IE: Unknown: DD770050F204104A0001101044000102103B00010310470010F96FC16C9A5023D1ECEDD35CE212245E102100045562656510230004556265651024000631323334353610420007303030303030311054000800060050F204000110110006556265654150100800022008103C0001011049000600372A000120 IE: Unknown: DD09001018020A00080000i7 4core HT 8MB L3 2.9GHz
16GB RAM
Nvidia GTX 860M 4GB RAM 1152 cuda cores
Comment
-
(Vinny, on the right of your screenshots, you have a monitor for temps, CPU, etc. What program/widget are you using? I have lm-sensors, but it's basic, not showing fan speeds, not much of a display, actually.)An intellectual says a simple thing in a hard way. An artist says a hard thing in a simple way. Charles BukowskiComment
-
conky...............Originally posted by Qqmike View Post
the ~/.conkyrc is posted hear on the forum somewhere ,,,,,,,
O hear's one place https://www.kubuntuforums.net/showth...l=1#post366385
you will need to edit to suit your needs
VINNYi7 4core HT 8MB L3 2.9GHz
16GB RAM
Nvidia GTX 860M 4GB RAM 1152 cuda cores
Comment
-
Snowhog,
I did not have Network Management in the system tray. (I never knew it existed.) Now it's there. I thank everyone for the help.Comment
-
(Thx Vinny)An intellectual says a simple thing in a hard way. An artist says a hard thing in a simple way. Charles BukowskiComment
Comment
